This beautifully detailed Craftsman home offers **1,651 sq. ft** of main living plus a **408 sq. ft bonus room** above the garage, giving potential for 3 or 4 bedrooms and up to 3 baths. The design includes a charming **160 sq. ft front porch** and a **177 sq. ft rear deck**, perfect for indoor-outdoor living. 0

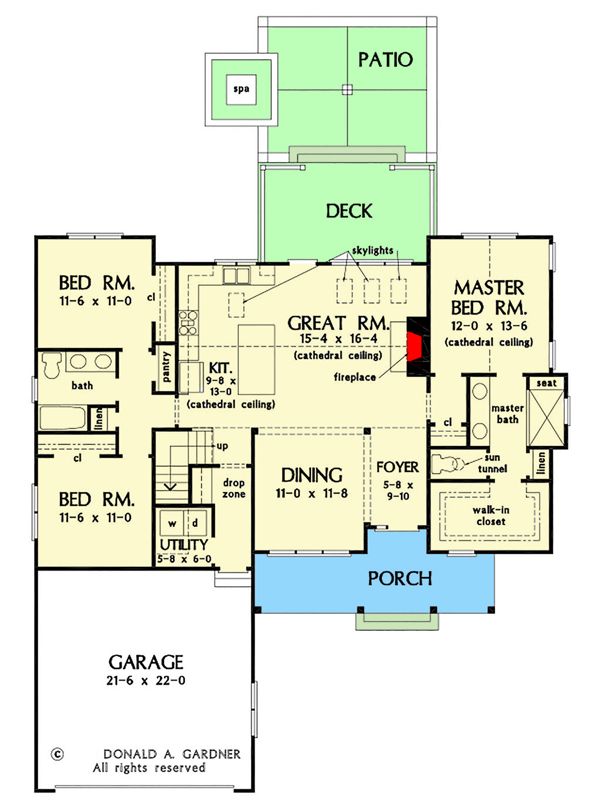

Floor Plan:
Exterior Design
The façade combines board-and-batten siding with cedar shake accents, giving texture and visual interest. 1 The front porch is supported by eight tapered columns and spans 24′-2″ in width and 6′ deep, creating a welcoming entry zone. 2
The roof is framed with a **10:12 pitch** as the primary slope and **12:12** on secondary transitions. 3 The home’s footprint measures **53′-8″ wide × 56′ deep**, and the maximum ridge height is **25′-11″**. 4
Interior Layout & Flow
The plan features a **14′-6″ cathedral ceiling** that sweeps from the island kitchen through the vaulted great room, enhanced by a central skylight. 5 This vertical volume opens the core and makes the space feel generous despite the modest footprint.
The layout uses a split-bedroom arrangement: the master wing on one side, and two additional bedrooms on the opposite side, allowing privacy. 6 The master suite enjoys a **13′ cathedral ceiling** and direct access to outdoor areas. 7
Bedrooms & Bathrooms
The master suite is generous, with its own luxurious bath and ample closet space. The two secondary bedrooms share a full bath located mid-house. 8 The bonus room above the garage includes a full bath in the plan, which gives flexibility for guests, media, or a fourth bedroom. 9
Living & Dining Spaces
The vaulted great room is the heart of the design. Its open sightlines toward the kitchen and rear deck make it ideal for social interaction. Light pours in via the skylight and large windows. 10
The dining area is adjacent to the kitchen and accesses the rear deck, creating a seamless indoor-outdoor flow for meals and entertaining. 11
Kitchen Features
Ample cabinetry and counter space are provided for practical storage and usability, while keeping the open feel intact. 13
Outdoor Living (Porch & Deck)
The **160 sq ft front porch** adds curb appeal, shade, and a social buffer between outdoors and interior. 14
The **177 sq ft rear deck** extends living space outdoors, accessible from the great room or dining area, making it ideal for al fresco dining or relaxation. 15
Garage & Bonus Room

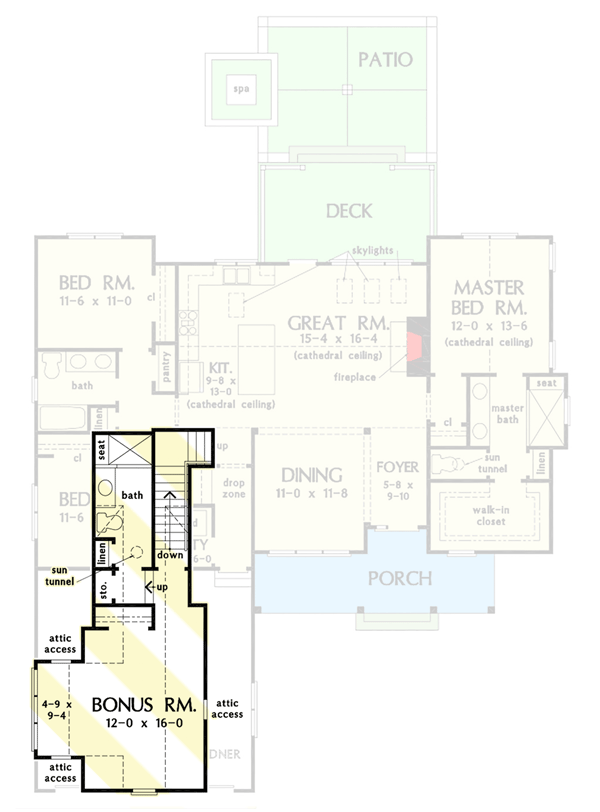

An attached **2-car front-entry garage (495 sq ft)** anchors the design. 16 Above the garage, the **408 sq ft bonus room** with attached bath offers a guest suite, hobby room, or office expansion. 17
Construction & Efficiency Notes
The first floor features **9′ ceilings** throughout, while primary living zones rise to cathedral heights. 18 Framing is done with stick construction, and exterior walls are 2×4 by default (though upgrades are available). 19
The compact footprint, efficient clustering of plumbing (kitchen, baths), and simple roof geometry help reduce material waste and mechanical runs. Overhangs and window placements moderate sun exposure and promote passive shading. 20
Estimated Building Cost
The estimated cost to build this home in the United States ranges between $280,000 – $460,000, depending on region, finish level, and site conditions (including bonus-room plumbing, roof complexity, etc.).
Why This Design Delivers
This small Craftsman plan packs big features: a vaulted central space, split bedrooms, outdoor connectivity, and a bonus room for future flexibility. It brings character, practical living, and expansion potential all in a well-balanced, efficient footprint.
